Dash Cam Dual Lens 4K UHD Recording Car Camera DVR

Dash Cam Dual Lens 4K UHD Recording Car Camera DVR
Night Vision | Wi-Fi Support | External GPS | 24H Parking Monitor

---

Key Specifications

• Model: B53P
• Chipset: Novatek 96670
• Sensor: Sony IMX415 (Front Camera) / Secondary Sensor for Rear Camera
• Front Camera: Up to 4K (3840×2160 @ 25FPS), 170° wide-angle, F1.6 aperture
• Rear Camera (optional): 1920×1080 @ 25FPS, 140° wide-angle, F2.0 aperture
• Night Vision: Sony IMX415 sensor with enhanced low-light performance
• Video Encoding: H.264
• Video Format: TS (or MP4, based on firmware)
• Screen: No built-in screen (headless design)
• Wi-Fi: Built-in for smartphone app connectivity
• GPS: External (records location, speed)
• Loop Recording: Overwrites oldest footage
• Parking Monitor: 24-hour mode (requires Hardwire Kit)
• Storage: MicroSD card (16–128GB, Class 10/U3 recommended)
• Power: 12V standard (use 24V-to-12V converter for 24V vehicles)

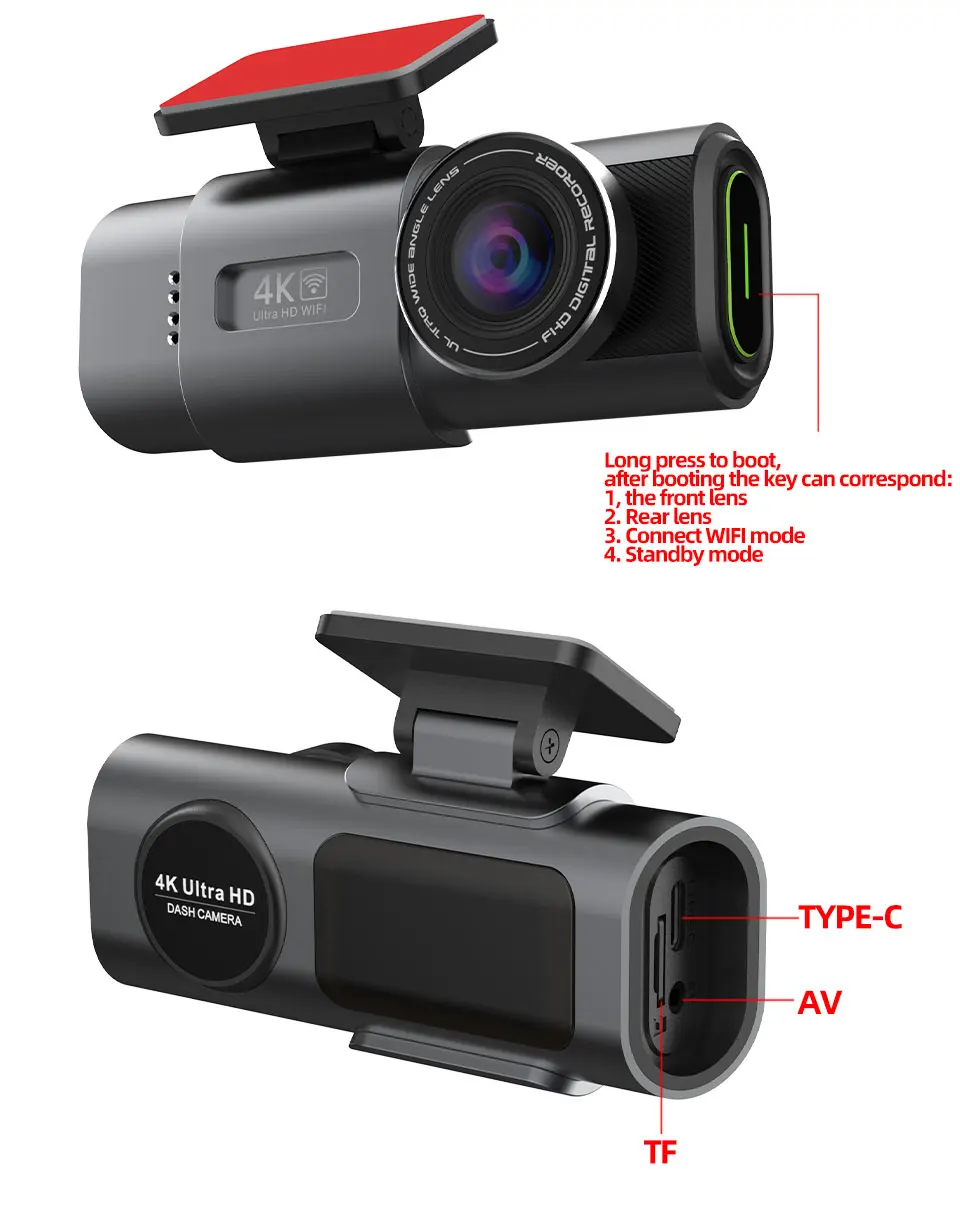

• Interface: AV-In / USB2.0 / MicroSD (TF Card) / Wi-Fi
• Dimensions: ~15 × 15 × 5 cm (package)
• Weight: ~0.35 kg
• Certifications: CE, FCC, RoHS

---

Product Overview

The B53P 4K Dash Cam offers ultra-high-definition (3840×2160) front recording and optional 1080P rear coverage. Using a Novatek 96670 chipset and Sony IMX415 sensor, it provides superb clarity day or night. This dash cam has a screenless design, minimising windshield clutter.

With built-in Wi-Fi, you can connect to a dedicated mobile app for easy video playback and settings adjustment. An external GPS antenna logs your route, speed, and location for later viewing in map-based software. Additionally, an optional Hardwire Kit enables a 24-hour parking monitor to capture events around the clock.

---

Key Features & Benefits

1. 4K Front + 1080P Rear

   • Front: 3840×2160 @ 25FPS (Sony IMX415 sensor), captures outstanding detail.
   • Rear (optional): 1920×1080 @ 25FPS, 140° angle, ensures full coverage from behind.

2. Enhanced Night Vision

   • Large F1.6 aperture (front) + Sony sensor significantly improves low-light performance for sharper nighttime recordings.

3. Wi-Fi & App Control

   • Connect to the dash cam via Wi-Fi for real-time viewing, playback, or file transfer from your smartphone.

4. External GPS Support

   • Attach the separate GPS module to record speed and location data, essential for insurance or event verification.

5. 24H Parking Mode

   • With an optional Hardwire Kit, the B53P dash cam provides round-the-clock security, auto-recording any motion or impact.

6. Wide Compatibility

   • Suitable for cars, SUVs, and standard 12V trucks (requires a 24V-to-12V converter for 24V supply).

7. Easy Installation & Compact Size

   • Minimal windscreen intrusion. The discreet design blends well for a clean, unobstructed view.

8. Multiple Language Support

   • Choose from English, Russian, Dutch, French, Spanish, Portuguese, German, Italian, Chinese, Japanese, Korean, Polish, Thai, etc., directly via the app.

9. High-Endurance Storage

   • Accepts MicroSD cards (16GB–128GB). Class 10 or U3 recommended for stable video writing.

---

Operating Details

1. Power Supply:

   • 12V via included car charger; 24V vehicles require a voltage step-down converter.
   • Optional Hardwire Kit for continuous parking monitoring.

2. Data Storage:

   • Loop recording overwrites oldest footage. G-sensor locks crucial files upon collisions.

3. Temperature & Voltage Management:

   • Built to handle a wide range of temperatures.
   • The Hardwire Kit includes low-voltage protection (it cuts off if battery drops below a safe level).

4. App Connectivity:

   • Control the dash cam, watch live previews, download footage via Wi-Fi, and update firmware using the dedicated mobile app.

---

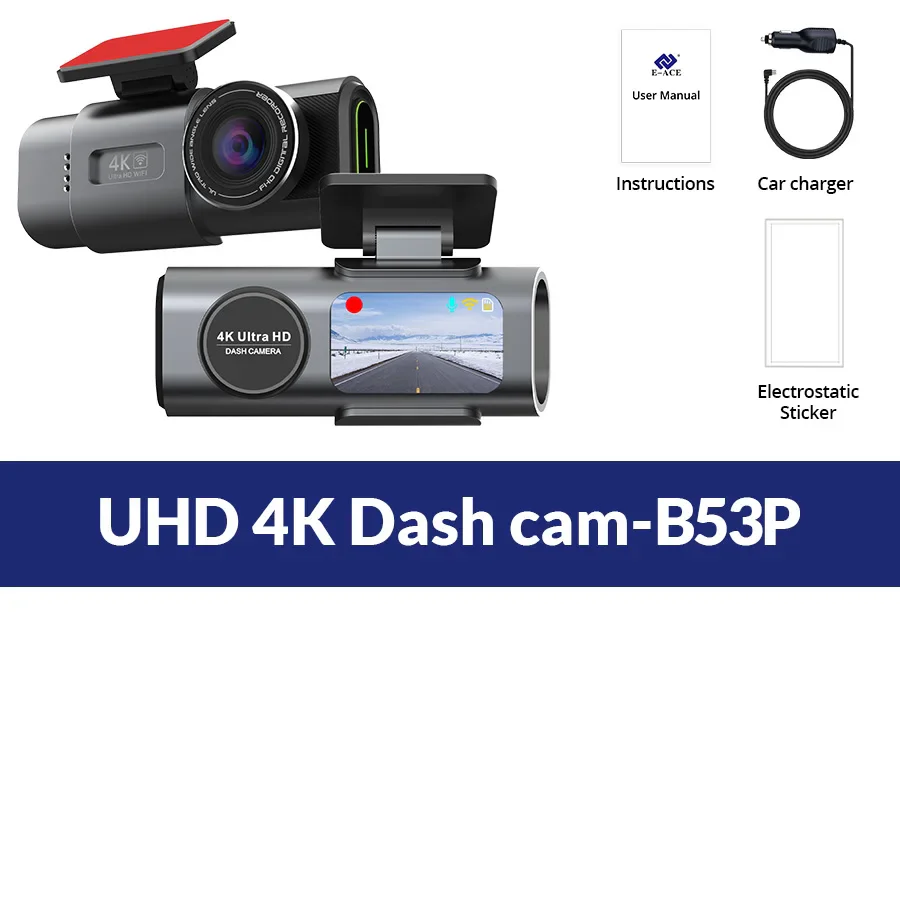

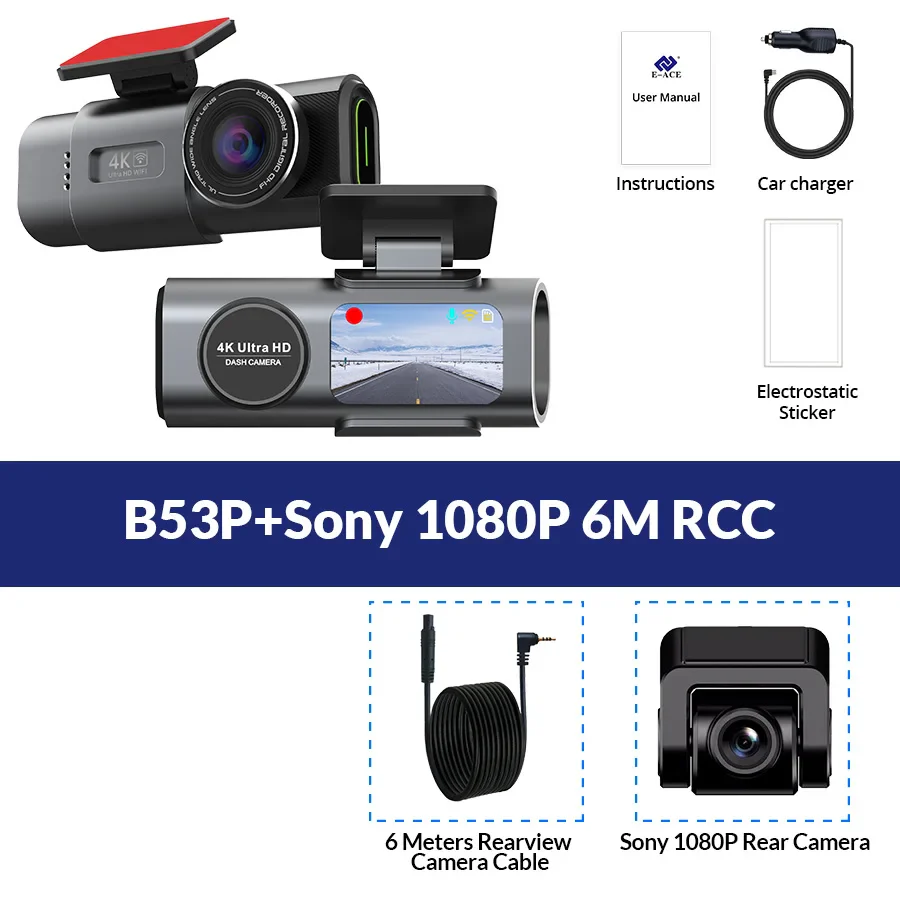

Packing List

• 1 × B53P 4K Dash Cam (front camera)
• 1 × Car Charger Power Cable
• 1 × Electrostatic Sticker (for easy windscreen mounting)
• 1 × USB Card Reader (Gift)
• 1 × User Manual

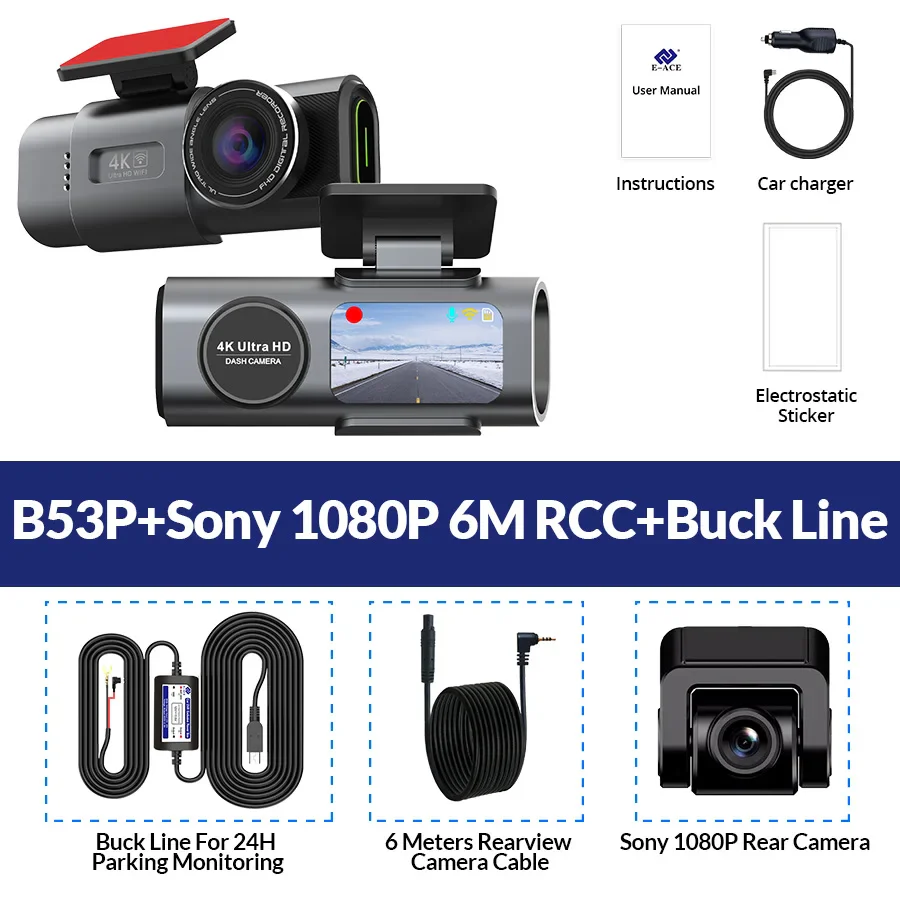

Optional Upgrades (Depending on SKU Selection):

• 1 × Rear Camera (with 6m cable)
• 1 × Hardwire Kit (for 24-hour parking monitor)
• 1 × GPS Module (external)
• 1 × Memory Card (Class 10 or U3, 16–128GB)

---

Elevate your driving safety and document every trip with the B53P 4K Dash Cam. Enjoy advanced features like Wi-Fi connectivity, optional GPS tracking, and 24-hour parking monitor. Record in crystal-clear UHD resolution—day or night—and never miss crucial evidence again.



Dash Cam Dual Lens 4K UHD Recording Car Camera DVR Night Vision Video Recorder Built-In Wi-Fi Support GPS 24H Parking









Product Display



About Rear Camera Installation
